Enable YugabyteDB Anywhere authentication via LDAP

LDAP provides means for querying directory services. A directory typically stores credentials and permissions assigned to a user, therefore allowing to maintain a single repository of user information for all applications across the organization. In addition, having a hierarchical structure, LDAP allows creation of user groups requiring the same credentials.

LDAP authentication is similar to a direct password authentication, except that it employs the LDAP protocol to verify the password. This means that only users who already exist in the database and have appropriate permissions can be authenticated via LDAP.

YugabyteDB Anywhere's integration with LDAP enables you to use your LDAP server for authentication purposes instead of having to create user accounts on YugabyteDB Anywhere.

Since YugabyteDB Anywhere and the LDAP server are synchronized during login, YugabyteDB Anywhere always uses the up-to-date credentials and roles information, such as role and password changes, as well as removal of users deleted in the LDAP server.

If configured by the LDAP server, YugabyteDB Anywhere can prevent the user from being able to change their password.

Use the YugabyteDB Anywhere UI

You can use the YugabyteDB Anywhere UI to enable LDAP authentication for YugabyteDB Anywhere login, as follows:

• Navigate to Admin > User Management > User Authentication.

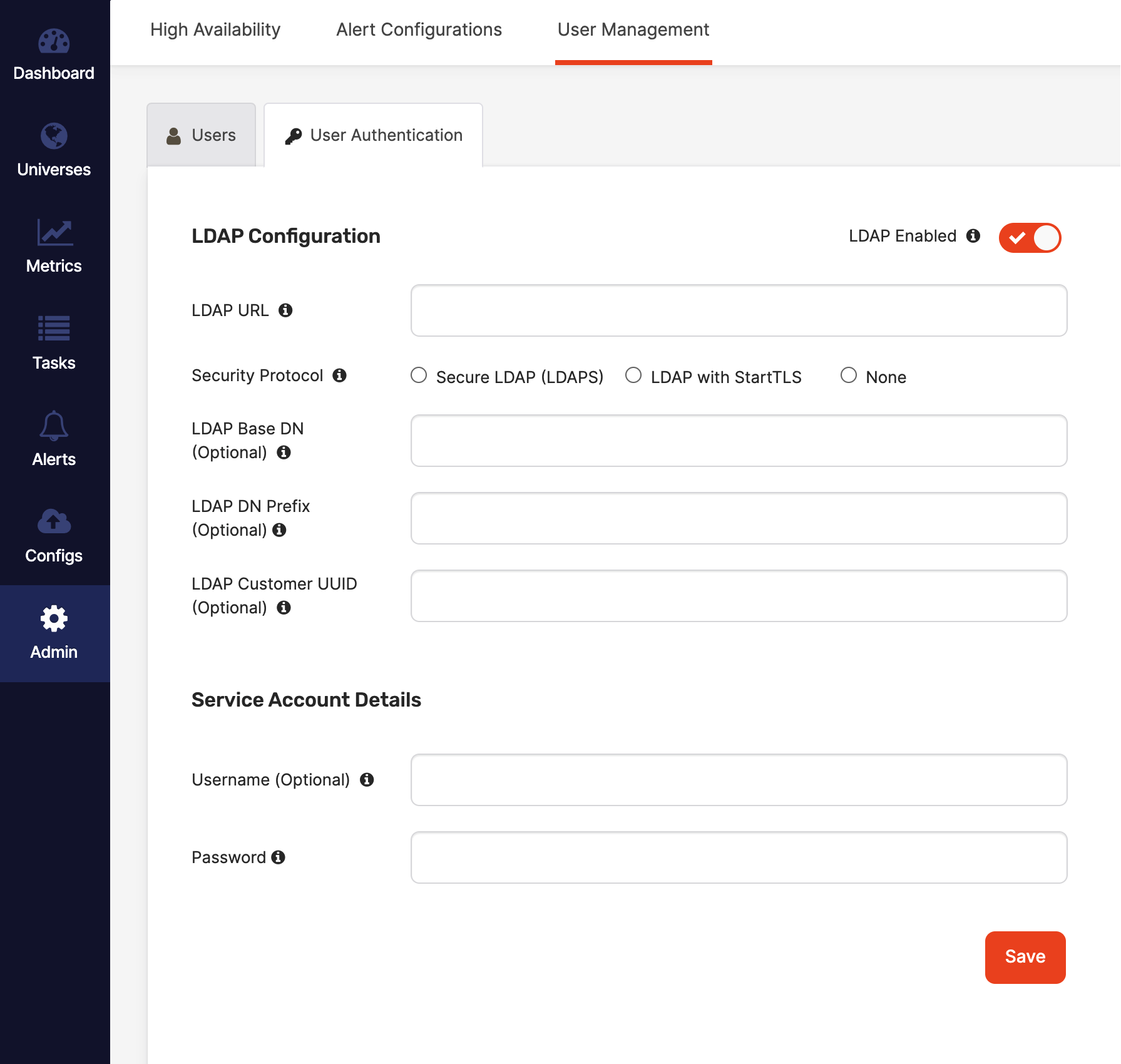

• Complete the fields in the LDAP Configuration page shown in the following illustration:







  With the exception of LDAP URL, the description of the preceding settings is provided in Use the YugabyteDB Anywhere API. The LDAP URL field value represents a combination of the ldap_url and ldap_port values separated by a colon, as per the following example:
  0.0.0.0:9000

Use the YugabyteDB Anywhere API

To enable LDAP authentication for YugabyteDB Anywhere login, you can perform a number of runtime configurations to specify the following:

• LDAP usage yb.security.ldap.use_ldap, set to true, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.use_ldap' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw 'true'


• Your LDAP server endpoint yb.security.ldap.ldap_url, set using the 0.0.0.0 format, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_url' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --data-raw '10.9.140.199'


• The LDAP port yb.security.ldap.ldap_port, set using the 000 format, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_port' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw '389'


• The base distinguished name (DN) yb.security.ldap.ldap_basedn to enable restriction of users and user groups, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_basedn' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw '[LDAP DN]'



  Replace [LDAP DN] with the actual value, as per the following example:


  ,DC=yugabyte,DC=com

• Prefix to the common name (CN) of the user yb.security.ldap.ldap_dn_prefix, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_dn_prefix' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw '[LDAP DN PREFIX]'



  Replace [LDAP DN PREFIX] with the actual value, as per the following example:


  CN=


  Note that YugabyteDB Anywhere combines ldap_basedn and ldap_dn_prefix with the username provided during login to query the LDAP server. ldap_basedn and ldap_dn_prefix should be set accordingly.

• The universally unique identifier (UUID) yb.security.ldap.ldap_customeruuid, if you have a multi-tenant setup, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_customeruuid' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw '[UUID]'



  Replace [UUID] with the actual value.


  If the UUID is not specified, then single-tenant is assumed by YugabyteDB Anywhere.

• SSL usage with LDAP yb.security.ldap.enable_ldaps, set to true or false (default), as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.enable_ldaps' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw 'true'



  If the port is configured for an SSL connection, then you can enable SSL when you configure the LDAP server on YugabyteDB Anywhere.

• TLS usage with LDAP yb.security.ldap.enable_ldap_start_tls, set to true or false (default), as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.enable_ldap_start_tls' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw 'true'



  If the port is configured for a TLS connection, then you can enable StartTLS when you configure the LDAP server on YugabyteDB Anywhere.

  By default, if neither ldap.enable_ldaps or ldap.enable_ldap_start_tls is enabled, the connection will be unsecured.

When configured, YugabyteDB Anywhere users are able to login by specifying the common name of the user and the password to bind to the LDAP server.

For more information, see Update a configuration key.

In addition to the preceding parameters, you may choose to specify parameters for the service account credentials. This would be helpful in certain scenarios. For example, the Windows Active Directory (AD) server does not typically provide regular users with query permissions for the LDAP server. Setting service account credentials would enable these users to query the LDAP server (the yugabytePlatformRole attribute would be read and set accordingly). The service account should have enough permissions to query the LDAP server, find users, and read the user attributes.

The following are the runtime configurations to specify:

• A service account user name yb.security.ldap.ldap_service_account_username, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_service_account_username' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw '[SERVICE ACCOUNT USERNAME]'



  Replace [SERVICE ACCOUNT USERNAME] with the actual value.


• A service account password yb.security.ldap.ldap_service_account_password, as follows:

  curl --location --request PUT 'https://10.9.140.199/api/v1/customers/f3a63f07-e3d6-4475-96e4-57a6453072e1/runtime_config/00000000-0000-0000-0000-000000000000/key/yb.security.ldap.ldap_service_account_password' \
  --header 'X-AUTH-YW-API-TOKEN: 5182724b-1891-4cde-bcd1-b8f7a3b7331e' \
  --header 'Content-Type: text/plain' \
  --header 'Cookie: csrfCookie=d5cdb2b36b00fcad1f4fdb24605aee412f8dfaa0-1641544510767-641be933bf684abcade3c592' \
  --data-raw '[SERVICE ACCOUNT PASSWORD]'



  Replace [SERVICE ACCOUNT PASSWORD] with the actual value.


Define the YugabyteDB Anywhere role

You need to define a YugabyteDB Anywhere-specific role for each user on your LDAP server by setting the yugabytePlatformRole annotation. The value set for this annotation is read during the YugabyteDB Anywhere login. Note that if the value is modified on the LDAP server, the change is propagated to YugabyteDB Anywhere and automatically updated during login. Password updates are also automatically handled.

If the role is not specified, users are created with ReadOnly privileges by default, which can be modified by the local super admin.

When LDAP is set up on a Windows Active Directory (AD) server, the user is expected to have permissions to query the user's properties from that server. If the permissions have not been granted, YugabyteDB Anywhere defaults its role to ReadOnly, which can later be modified by the local super admin.
