Create a multi-region universe

YugabyteDB Anywhere allows you to create a universe spanning multiple geographic regions.

For example, you can deploy a universe across Oregon (US-West) and South Carolina (US-East). Once deployed, you can connect to each node and perform a variety of tasks.

Create the universe

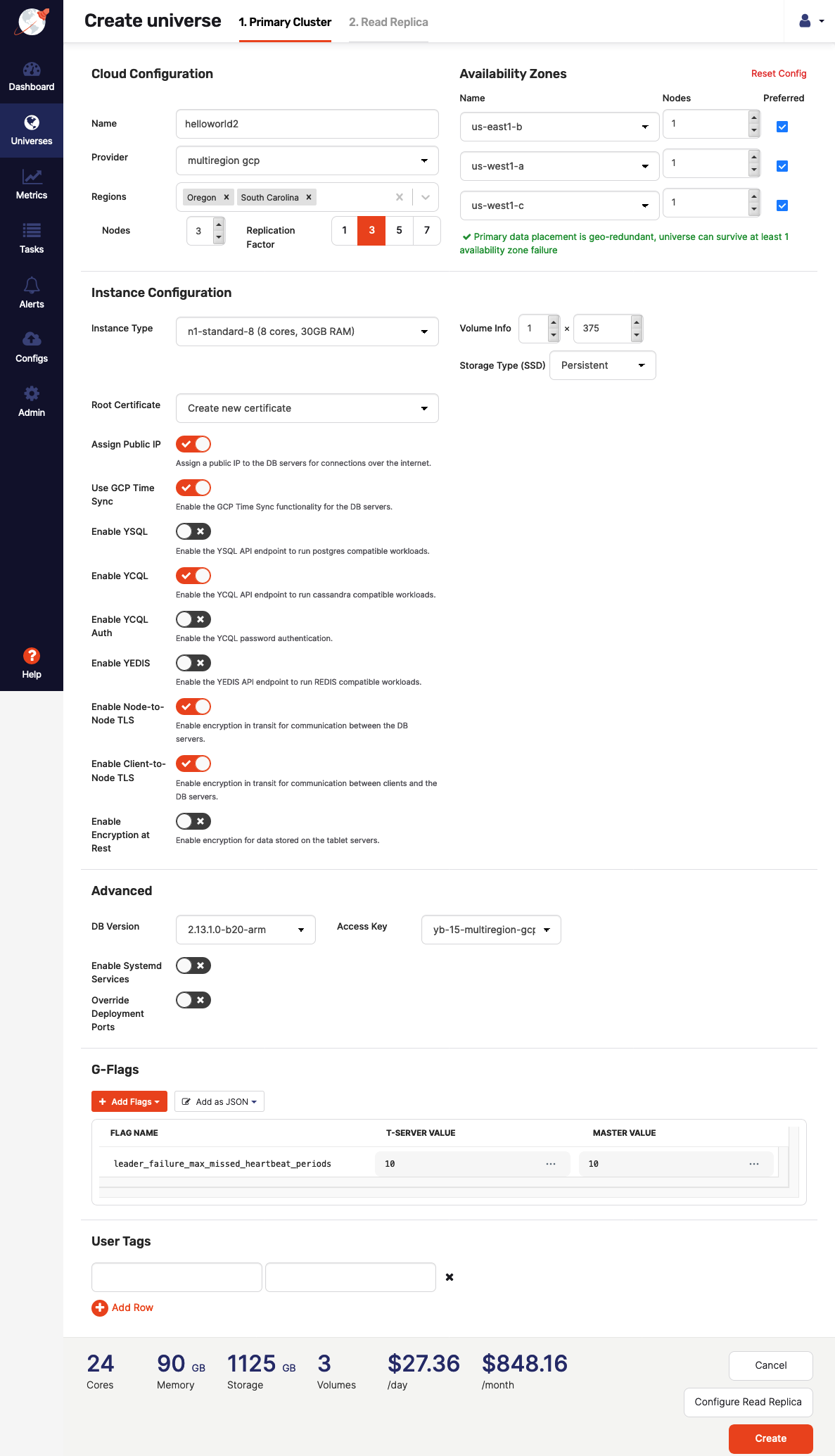

Before creating a universe, you need to configure a cloud provider, such as Google Cloud Provider (GPC). When done, use the YugabyteDB Anywhere UI to navigate to Universes, click Create Universe, and enter the following sample values:

In the Name field, enter helloworld2.
In the Provider field, select the cloud provider you configured.
Use the Regions field to enter Oregon and South Carolina.
In the Instance Type field, select n1-standard-8.
Provide any other desired settings.
Click Add Flags and add the leader_failure_max_missed_heartbeat_periods flag with the value of 10 for Master and T-Server. Note that since the data is globally replicated, RPC latencies are higher; this flag is used for increasing the failure detection interval in a higher RPC latency deployment.
Click Create.

Examine the universe

When the universe is created, you can access it via Universes or Dashboard.

To see a list of nodes that belong to this universe, select Nodes. Notice that the nodes are distributed across geographic regions.

You can also verify that the instances were created in the appropriate regions by clicking on the node name to access the cloud provider's instances page. For GCP, you navigate to Compute Engine > VM Instances and search for instances that contain helloworld2 in their name.

Run a global application

Before you can run a workload, you need to connect to each node of your universe and perform the following:

Run the CassandraKeyValue workload.
Write data with global consistency (higher latencies are expected).
Read data from the local data center (low latency timeline consistent reads).

The first step is to navigate to Nodes, click Connect, and then use the Connect dialog to provide the required endpoints.

Connect to the nodes

You start by creating three Bash terminals. Then, for each node, click its corresponding Actions > Connect, copy the sudo command displayed in the Access your node dialog, and paste it into a Bash terminal.

With the goal of starting a workload from each node, perform the following on every terminal:

Install Java by executing the following command:
```
sudo yum install java-1.8.0-openjdk.x86_64 -y
```
Switch to the yugabyte user by executing the following command:
```
sudo su - yugabyte
```
Export the YCQL_ENDPOINTS environment variable (IP addresses for nodes in the cluster) by navigating to Nodes, clicking Connect, then using the Connect dialog to copy endpoints under the relevant category, and finally pasting this into a Shell variable on the database node yb-dev-helloworld2-n1 to which you are connected, as per the following example:
```
export YCQL_ENDPOINTS="10.138.0.3:9042,10.138.0.4:9042,10.138.0.5:9042"
```

Run the workload

Run the following command on each of the nodes, substituting REGION with the region code for each node:

$ java -jar /home/yugabyte/tserver/java/yb-sample-apps.jar \
            --workload CassandraKeyValue \
            --nodes $YCQL_ENDPOINTS \
            --num_threads_write 1 \
            --num_threads_read 32 \
            --num_unique_keys 10000000 \
            --local_reads \
            --with_local_dc <REGION>

You can find the region code of each node by navigating to Nodes and looking under the CLOUD INFO column: the first part before the slash indicates the region. For example, us-west1.

Check the performance

The application is expected to have the following characteristics based on its deployment configuration:

Global consistency on writes, which would cause higher latencies in order to replicate data across multiple geographic regions.
Low latency reads from the nearest data center, which offers timeline consistency (similar to asynchronous replication).

You can verify this by navigating to Metrics and checking the overall performance of the application.
